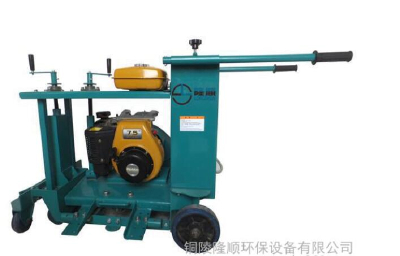

A, product overview

1, independent research and development, domestic initiative. Pioneered the domestic cutter circular spherical cutting first;

2, multi-function circular spherical slitting machine is suitable for all kinds of cement concrete, cutting of asphalt pavement maintenance, example: urban road CMC

Cut around;

3, its unique circular cutting ability saves ordinary slitting machine cross destructive cutting trouble for many times, its efficiency is ordinary cutting

Sewing machine more than 10 times. Time, manpower, provincial construction materials;

4, after construction effect: beautiful, solid durable, strong bearing capacity.

5, adopt Japanese GX690 two-cylinder engine, easy to start, small size, mobile flexible and large power, combustion

Low oil consumption.

6 procession, hand push type cutting, cutting depth, the Angle is easy to adjust;

7, a complete circular cutting, without damaging cross cutting; To save time, manpower and materials;

8, this product can do straight road slitting machine, also can do circular slitting machine; Linear cutting adopts flat gold

Corundum circular saw blade for cutting, round wire cutting USES paraboloid diamond circular saw blade for cutting;

Second, the main parameters:

1, maximum cutting depth: 250 mm

2, maximum cutting diameter: 1570 mm

3, the minimum cutting diameter: 740 mm

4, main dimensions: 1250 * 730 * 730 (mm)

5, the blade size: 460 or higher (mm)

6, engine: GX690 duplex
