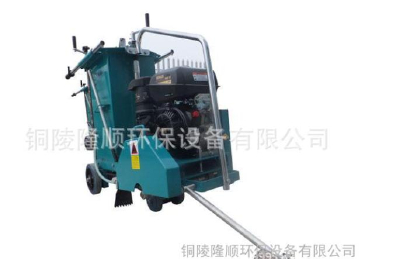

HQ - SB550A road cutting machine Semi-automatic road cutting machine Gas power cutting machine slitting machine

Road cutting machine adopts gas drive, the use of diamond saw blade for cutting concrete pavement, Dali, terrazzo, component of hard brittle materials such as cutting machine.

No power supply, especially adapted to the field situation, used in road construction, construction engineering, stone processing, and cement to the system, etc.

This machine has simple structure, stable cutting, high speed, flat, smooth kerf width, flexible operation, higher efficiency, is a mining, enterprises and institutions for architectural decoration, road maintenance machinery of excellence.

Brand: lung suitable models: HQ - SB550 pavement mechanical type: the road cutting machine

Cutting depth rating: 8.1 (kw) : 180-200 (mm) overall weight: 115 kg

Adjust way: spiral fuel: gasoline tank capacity: 45 l (plastic water tank)

Second, features:

Engine horizontal axis diameter of axle Φ 27 7 mm slot key

Cutter blade spindle bearing adopts Japan NSK self-aligning ball bearing, long service life.

Cutting machine belt adopts imported from Japan samsung card V v-belt, wear resistance, high temperature resistance, long service life.

Special design front wheel adopts multi-layer waterproof, dustproof, surface using high elastic design, stronger grip ability, effectively prevent the blade deflection displacement produced during cutting.

Rear wheel maximum rear design, the whole machine center of gravity forward, to ensure that the blade cutting force to maximize the total pressure, cutting efficiency is higher.

Inside the front and special design, large extent reduce the friction coefficient, easier operation, more efficient.

The depth adjustment rod using 8.8 screw with high strength and long service life extension nut, with strong rigidity, long life, high concentricity, easy operation, etc. And equipped with positioning lock device, ensure the cutting depth is consistent.

Walk the car adopts the seamless connection, good stability, precise straight degrees error is small.

The main counter USES double beam structure design, light weight, high strength, strong and durable.

Engine bedplate of foot and the main force connection with disperse, and effectively strengthen the main counter fatigue resistance.

The whole machine is made of high-grade plastic spraying coating chromium plating parts processing, beautiful and easy, anti-corrosion ability.

Rear wheels can be driven by worm gear and worm increase, more freely and effort forward.

Blade cover connected by H nylon pieces, change the blade is very convenient, and avoid the rigid connection and noise, built-in cross spray, water saving and environmental protection, direct external interface, easy cleaning, etc.

Safety belt cover is made of the whole board to fold pressure forming, light weight, strong rigidity.
