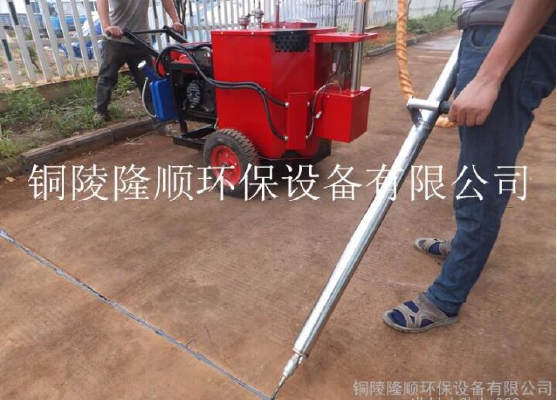

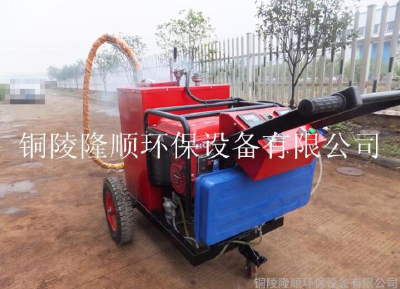

Irrigation sewing machine parameters:

Material volume: 80 liters

Walking style: hand push type

Burner: imported 445 t1 diesel burner riello, parameters are shown in table 1 and figure 1)

Temperature control: the SLA - 5000 intelligent digital temperature control device, automatic constant temperature control, the parameters are shown in table 2)

Imported material tube electric heating tube, 4 meters 4 meters production electric heating discharge hose: voltage: 220 vac 1050 w 4.8 A

The minimum bending radius: 200 mm diameter: Φ 10 to 13 mm

Generator: imported from 3.3 KW, 220 vac, yamaha generator set

Rubber output: 6 gu - 20 k reducer, 61 kz50rgu - CFW. Live

Power: 250 w, 220 vac, voltage, frequency 50 hz, rated current 2 a, 12 uf capacitance, speed range 90-1400 RPM.

Governor: US5120-02, voltage 220 vac, stepless output

Output pump: CB - B4 pump, relief valve full cycle output, heat faster, more uniform, ensure that the user security of person

Hot melt kettle: equipped with a safety device with heat conduction oil set of 80 litres of hot melt kettle, and configure the relief valve full circulation, heat faster, more even, imported Italian burner, high combustion efficiency, safety and environmental protection.

Features:

(1), independent research and development on integrated hybrid electric and electric drive technology, low emissions, low energy, energy conservation and environmental protection.

(2), advanced intelligent ignition, test temperature control technology.

(3) oil, unique set of hot melt kettle design.

(4), the only thermal cycle heating system design.

(5), the highly effective discharge system design.

(6), design of the machine safety low center of gravity.
