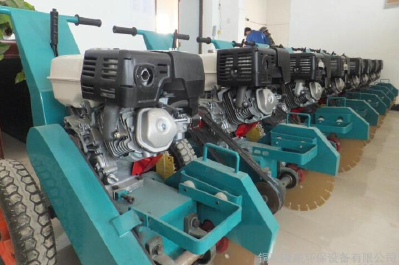

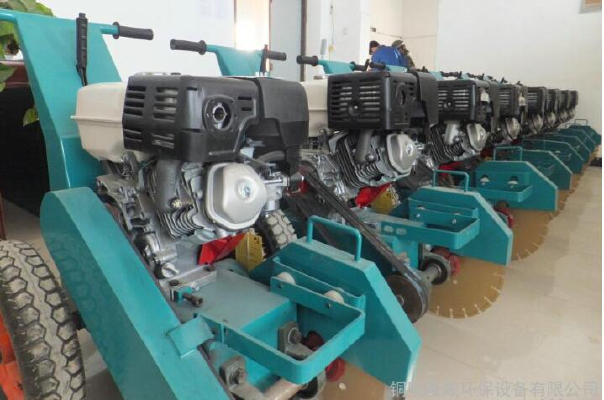

Products overview:
1, USES the division and Japanese brand engine, big power, low fuel consumption rate;
2, USES the high pressure fan for cooling and purging, prolong the life of the blade, can immediately crack seal again.

Second, the main characteristics

1, the crack-cleaning blade diamond dry cutting circular saw blade, dry cutting seam, don't need to add cooling fluid;
2, USES the high pressure fan for cooling and purging, prolong the life of the blade, and can immediately crack seal;
3, gasoline engine, easy to start, small volume, flexible mobile;
4, hand push type clean feed and easy to adjust the crack-cleaning speed, the effect is artificial crack-cleaning 5 to 8 times.

Three, technical parameters

1) the crack-cleaning speed: ≧ 5 m/min
2) the crack-cleaning depth: 20-60 mm
3) supporting power: 9 p

4) rated speed: 3200 r/min
5) walking style: hand push type
6) the weight: 100 kg
7) dimensions: 1000 * 600 * 850 (mm)

Fourth, independent research and development technology

1, the design of a power, a carrier of the two kinds of operation function. Is to design a good plate bending forming, avoid building complex, cumbersome and other unreasonable process. Resistance to deformation ability is stronger. At the same time, it reduced the production and maintenance difficulty and cost. Energy conservation and emissions reduction in favour of products.
2, structure optimization, reduce the weight. Use easier and more flexible.
3, symbols of human body engineering and mechanics principle design, improve the efficiency. The machine reasonable balance of design, to facilitate operation blade under gravity and thrust the stability of the work, but also to the reasonable requirements of easy operation. Bending machine the size of the reasonable and humanized operation design, back foot pedals and bending operation between the reasonable space, to avoid the foot piece of may. Use rise more convenient and flexible. A narrow body of the fuselage design, allows users to view more broad. To reduce the result of the bending correction cutting line body fatigue.
4, forced cooling design, increase the service life of blade. Centrifugal fan with high strength and toughness nylon blade, double inlet design, able to withstand up to 10000 revolutions per minute of wind resistance pressure. Large displacement, high wind pressure. To thoroughly remove impurities in gap create reliable conditions, and small volume light weight. Without the air compressor for high pressure air source. At the same time, effective synchronous seam for blade cooling cooling, greatly improving the service life of blade. Effectively reduces the use cost.
5, blade cutting gap and fast regulation of assignments, and fine-tune the design. As far as possible in order to reduce the idle machines use, that is, improving energy utilization ratio, designed the homework and neutral institutions, and manual, automatic rapid transformation, and increase the manual fine tuning, accurate depth adjustment needed to clean up.
6, axle housing within the suspension, anticorrosive, prevent card die design.
7, easy to maintain inside before installation job rotation shaft assembly design. Usually slitting machine rotating shaft through the bearing and bearing seat fixed on the bottom of the vehicle operation dirt easily corrosion on the blade rotation shaft assembly. The service life is greatly reduced. More is not easy to maintain. Before work inside rotating shaft assembly design very good solve the problem. The machine also has increased the shield and the touch rod. Ensure that use safety.
